TOYOTA VERSION：V6.01.021

VOLVO  VERSION：2010D
HONDA VERSION：2.024.005.USE.WIN32

         MVCI for TOYOTA TIS
          MVCI FOR HONDA HDS
          MVCI FOR VOLVO DIDA
China J2354 ,MVCI tool is a high performance OEM diagnostics and reprogramming interface for TOYOTA TIS,HONDA HDS,and VOLVO DIDA. MVCI device is compatible with Toyota group vehicles like Toyota, Lexus, and Scion over the J1962 DLC3 diagnostic connector. Ideal tool for Toyota group vehicles workshops, everything you need to maintain Toyota, Lexus and Scion vehicles that uses these protocols: K-Line ISO 9141, KWP 2000 ISO 14230-4, SAE J1850 PWM, SAE J1850 VPW, CAN 2.0B ISO 11898, CAN ISO 15765-4

Features:
Fully compatible with Toyota TIS Techstream ,HONDA HDS and VOLVO DIDA,3-IN-1,update all the time.
Supports Diagnostics, Reprogramming, Active tests, and key programming

Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics

Fully compatible with SAE J2534

Programmable power supply

Able to apply 5V-24V to OBD pins 6,9,11,12,13,14 or AUX 2.5mm stereo connector

Able to apply GND to OBD pins 6,9,11,12,13,14,15 or AUX 2.5mm stereo connector

RGB status LEDs

Supported Protocols:
K-Line ISO 9141

KWP 2000 ISO 14230-4

SAE J1850 PWM

SAE J1850 VPW

CAN 2.0B ISO 11898

CAN ISO 15765-4

Specifications:
Operating Temperature: -20 to 70 °C ( -4 to 158 °F )

Storage Temperature: -40 to 85 °C ( -40 to 185 °F )

Diagnostic Interface: 16PIN

USB Interface : USB 2.0

Power: DC 5 V – 36V

Consumption: 0.7W

Dimensions: 95mm(3.74″)L x 49mm(1.93″)W x 28mm(1.10″)H

Net Weight: 85g

Gross Weight: 193g

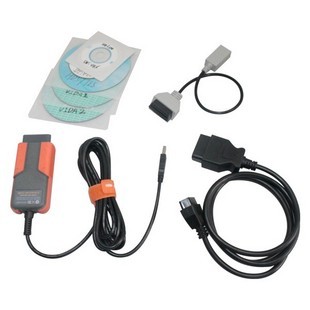

Accessories Included:

User Manual: Instructions on tool operations

Driver CD: Includes user manual, drivers, and etc.

OBD II cable: Communicates between tool and vehicle

USB cable: Communicates between tool and PC/Laptop
